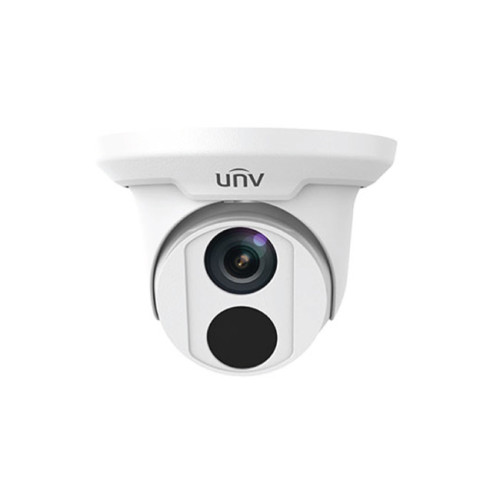

UNV IPC3612ER3 -PF40-B 2.0MP / 4mm IR FIXED DOME IP CAMERA

UNV IPC3612ER3 -PF40-B 2.0MP / 4mm IR FIXED DOME IP CAMERA

0 Customer Review
  • Model: UNV IPC3612ER3 -PF40-B 2.0MP / 4mm IR FIXED DOME IP CAMERA
  • Product Code: 23098
  • Availability: In Stock
Quick Overview
  • Metal Housing
  • Smart IR , up to 30m IR distance
  • H.265/H.264/MJPEG
  • 9:16 corridor mode
  • Angle of view(H): 80.8
  • 4KV Surge Protection
4,350৳
+ -
  • Description
  • Reviews (0)

Description :

Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON); B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Auto-IrisNo
  • Day & NightIR Cut Filter
  • Digital Noise Reduction3D DNR
  • Wide Dynamic RangeDWDR
  • Angle of adjustmentPan: 0° to 355°, tilt: 0° to 70°


Lens
  • Focal Length2.8/4/6 mm
  • ApertureF2.0
  • FocusNo
  • FOV2.8 mm: horizontal FOV: 115°, vertical FOV: 62°, diagonal FOV: 136° 4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103° 6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
  • Lens MountM12

IR
  • IR Range2.8 mm, 4 mm: 20 meters 6 mm: 30 meters
  • Wavelength850nm


Compression Standard
  • Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.264+Main stream supports
  • H.265 TypeMain Profile
  • H.265+Main stream supports
  • Video Bit Rate32 Kbps to 8 Mbps
  • Audio Compression (-S)G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate (-S)64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set
  • Behavior AnalysisLine crossing detection, intrusion detection
  • Region of Interest1 fixed region for main stream


  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240
  • Image EnhancementBLC/3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Target CroppingNo
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in (-S)


Network
  • Network StorageSupport built-in micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware VersionV5.5.3
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+


Interface
  • Audio (-S)1 input (line in), 1 output (line out), mono sound
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Alarm (-S)1 input, 1 output
  • Video OutputNo
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • SVCNo
  • Reset ButtonYes




General
  • Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, PoE (802.3af, class 3)
  • Power Consumption and CurrentPoE: (802.3af, 36V-57V), 0.2 A to 0.1 A, max. 6.5W 12 VDC, 0.4 A, max. 5W
  • Protection LevelIP67
  • MaterialFront cover: plastic, base: metal
  • DimensionsCamera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) With package: 135× 135 × 110 mm (5.3″ × 5.3″ × 4.3″)
  • WeightCamera: approx. 400 g (0.9 lb.) With package: approx. 500 g (1.1 lb.)


Wi-Fi
  • Wireless StandardsIEEE 802.11b/g/n
  • Frequency Range2.4 GHz to 2.4835 GHz
  • Channel Bandwidth20/40MHz
  • Protocols802.11b: DQPSK, DBPSK, CCK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Transfer Rates11b: 11Mbps, 11g: 54Mbps, 11n: 65Mbps
  • Wireless Range50 m
